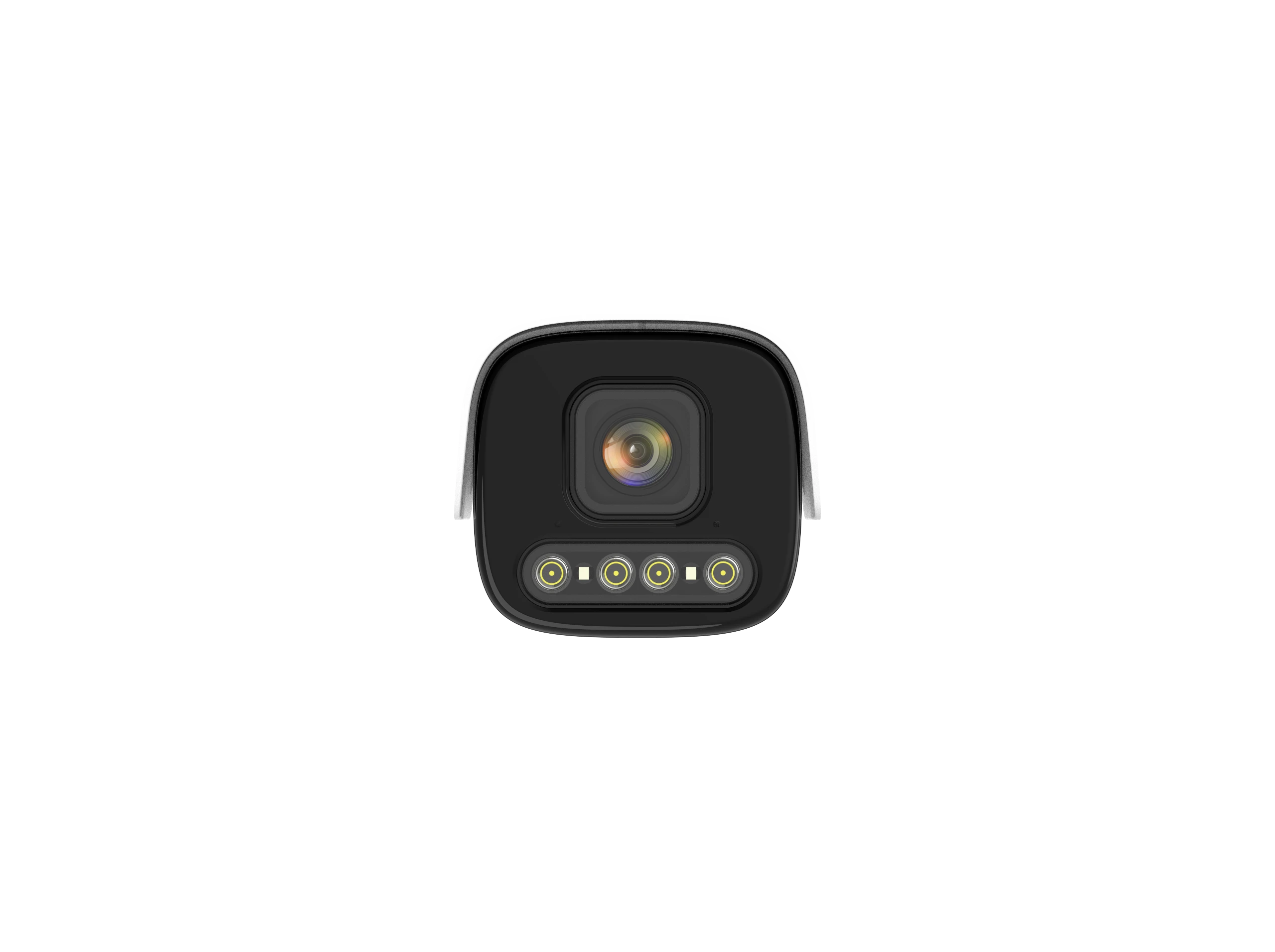

4K 8.0MP Motorized Zoom Full-Color Video & Audio Network Camera
JVS-N819-JDL
Message
Features
- Motorized Varifocal Lens (2.7-13.5mm) for Easy Installation and Monitoring
- 24/7 Full-Color
- Built-in Mic and Speaker
- With VQC Technology
- Support SD Card (Up to 512G)
- WDR (120dB)
Corporate Strength
——————————————————————————-
Specifications
| Video | |
| Image Sensor | Image Sensor 1/2.8″, Progressive Scan, CMOS |
| Max Resolution | 3840×2160 |
| Effective Pixels | 8.0MP |
| Compression Standard | H265/H.264/H.265+/MJPEG |
| Framerate | 30fps |
| Bitrate | Main Stream: 256Kbps ~ 4096Kbps
Sub Stream: 68Kbps~1024Kbps Third Stream: 68Kbps~1028Kbps |
| SNR (dB) | ≥50dB |
| Min. Illumination | 0Lux (light ON) |
| Lens | |
| Lens | Varifocal Lens, Motorized Lens, 2.7mm-13.5mm |
| Focal lens & FOV | 2.7mm-13.5mm Horizonal FOV: 101.4° to 26.9°
Vertical FOV: 53.6° to 15.2° Diagonal FOV: 118.7° to 30.5° |
| Function | |
| Audio Codec | G.711U/G.711A (default) |
| Exposure Control | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Digital 3D Noise Reduction | Support |
| OSD Information Setting | By default: The customized OSD supports a maximum of six lines, each line contains a maximum of 32 characters. One Chinese character is counted as two characters |
| SNTP | Support |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Smart Motion Detection | Not Support |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness adjustment |
| Image Style | Standard, Soft, Transparent |
| Day and Night Function | Auto, Always Black & White, Always Color, Scheduled Color |
| Privacy Mask | Support up 8 areas |
| Night Vision Optimization | Support |
| WDR | 120dB |
| Screen Settings | Screen mirroring, Screen flipping |
| IP Adaptation | Support automatic adaptation of IP address (Optional) |
| Intelligent Analysis | Not Support |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis |
| Audio Function | Built-in Mic and Speaker |
| SD Card | Support（512G） |
| Peripheral Extension Interface | Audio Input/Output, Alarm Input/Output |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 3x Streams |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, QoS, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP |
| Access Protocol | Standard ONVIF, Public Cloud |
| Network Transmission | CloudSEE 2.0 |
| Fusion Cloud Platform | Support |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 4 Warm Light LEDs + 4 IR LEDs |
| IR Distance | IR: Up to 80 Meters
Warm Light: Up to 60 Meters |
| Waterproof Level | IP67 |
| Power Supply | DC12V/2A or PoE |
| Power Consumption | <6W (During Day); <12W (At Night) |
| Working Temperature | -30℃~60℃(-22℉~140℉) |
| Working Humidity | 10% ~ 90% Rh |
| Color/Material | Black and White/Metal+Plastic |
| Dimensions (WxHxD) | 103x91x255mm |
| Weight | 732g |
| Installation Method | Wall or Ceiling Mount |
