JVS-LCD49-35U
Key Features
· Narrow Frame: The 3.5 mm ultra-narrow frame design delivers a more detailed and immersive display experience.
· High Contrast Ratio: With an ultra-high contrast ratio of 1200:1, colors appear brighter, and the image has richer layers.
· Full HD Resolution: The unit offers an ultra-high physical resolution of 1920×1080, ensuring clearer and more refined picture quality.
· TFT Technology: Leveraging a-Si TFT technology, the display provides excellent stability, a wide viewing angle, fast response speed, and high color reproduction.
· Anti-Glare Material: The use of Anti-glare material reduces screen reflection, resulting in more realistic images and enhanced visual effects.
· LED Backlight: The direct-type LED backlight ensures more uniform display brightness without the border shadow phenomenon.
· Image Enhancement: Automatic color and image enhancement engine technology improves image details, making the picture more vivid and beautiful.
· Durable Build: The unit is constructed from metal, providing protection against radiation, magnetic fields, and strong electrical interference.
· Industrial-Grade Stability: Designed for industrial use, the unit supports high-strength, stable operation for 24/7 use.
· Flexible Installation: The unit supports various splicing and installation methods, making it suitable for diverse applications.
Corporate Strength
Specification
| Panel Properties | |
| Size | 49inch |
| Patchwork | 3.5mm |
| Backlight Type | D-LED |
| Resolution | 1920×1080 |
| Display Size | 1074.1(H) x 604.3(V) (mm) |
| Pixel Pitch | 0.630(H) x 0.630(V) (mm) |
| Response Time | 6.5ms (Typ.) |
| Brightness | Type: 500cd/m² |
| Min: 400cd/m² | |
| Contrast | 1200:1(Typ.) |
| Viewing Angle | 178° (Vertical, Horizontal) |
| Color | 16.7M(10 bits) |
| Color Saturation | 72% (NTSC) |
| Zoom | 16:9 |
| Refresh Rate | 60Hz |
| Surface Treatment | Anti-Glare, Haze 3% |
| Power Properties | |
| Input Voltage | AC100V ~ 240V, 50/60Hz |
| Power Consumption | Working State: ≤ 200W; Standby State: ≤ 2W |
| Functional Properties | |

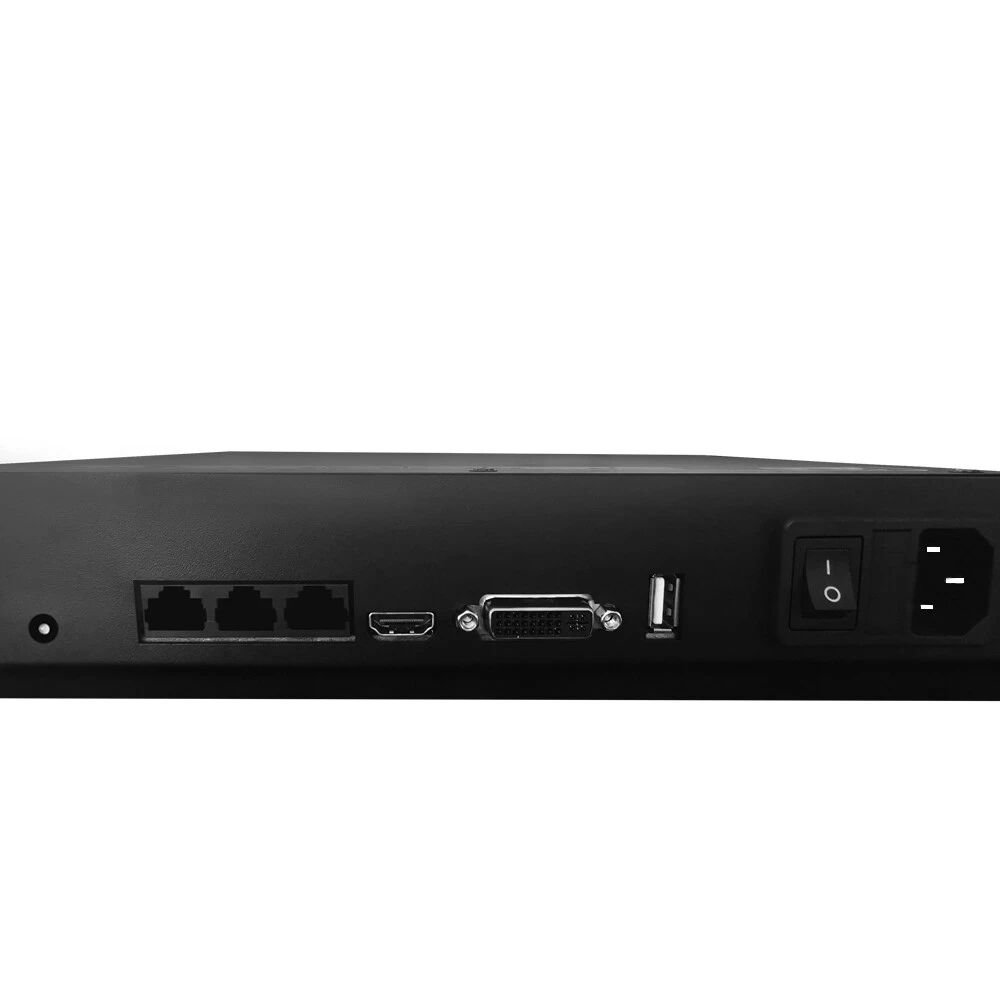

| Input Interface | USB x1, HDMI x1, DVI x1, RS232-In x1 |
| Output Interface | RS232-Out x2 |
| Operation Method | Remote Control, RS232 Control |
| Working Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -10°C ~ 60°C |
| Operating Humidity | 20% ~ 85% Rh Non-Condensing |
| Storage Humidity | 10%～90% Rh Non-Condensing |
| Language | |
| OSD | English/Chinese |
| Structure | |
| Overall Size | 1077.58mm x 607.8mm x 63.7mm (Without Backpack) |
| Package Size | 1145mm x 315mm x 680mm (Double Pack Reference) |
| Total Weight | Approx. 22 kg (Excluding Accessories) |
| Housing Material | Strong Metal Structure |
| Installation | Floor Standing/Wall Mounted/Ceiling Mounted |
| Other | |
| Appendix | AC Power Cord, Network Cable, Hook, Remote-Control, Remote-Control Receiver, Certificate, Warranty Card, Instruction Manual |
