4CH 2MP XVR KIT
JVS-XD2504-M
Message
Key Features
• AHD, TVI, CVI, CVBS, IP video input.
• Automatic networking support.
• Cloud services, P2P.
• H.264+ video compressions.
• Third-party network cameras supported.
• HDMI and VGA output at up to 1920×1080 resolution.
Specifications
| Model | JVS-XD2704-HB10V |
| Video and Audio | |
| Analog Camera Input | 4 Channel, BNC |
| HDCVI Camera | 1080P@25/30fps, 720P@25/30fps |
| AHD Camera | 1080P@25/30, 720P@25/30fps |
| TVI Camera | 1080P@25/30, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | up to 1080p |
| Video port configuration | Full HD: 4CH |
| Hybrid:2CH+2CH | |
| Full Network: 8CH | |
| Audio In/Out | 4/1, RCA |
| Two-way Talk | 1CH RCA |
| Recording | |
| Compression | H.264+/H.264 |
| Resolution | 1080P, 720P, WD1 |
| Record Rate | Main stream:1080P(1~20fps),1080N/720P/960H/D1(1~20fps） |
| Sub stream: D1/CIF(1~8/12fps) | |
| Record Mode | Manual, Schedule (General, Continuous), MD (Motion Detection, Video Loss, IVP),
Alarm Device |
| Audio Compression | G.711U |
| Display | |
| Interface | 1x HDMI, 1x VGA |
| Resolution | 1280×1024, 1024×768, 1280×800, 1440×900, 1920×1080 |
| OSD | Device ID, Time, Record Setting, Alarm setup, Audio,Camera title |
| Network | |
| Interface | 1 RJ-45 Port (100M) |
| Network Function | TCP/IP, DHCP, DNS, DDNS, HTTPS, HTTP, |
| Smart Phone | iPhone, Android |
| Interoperability | ONVIF |
| Playback and Backup | |
| Playback | 4CH |
| Search Mode | Time /Date, Alarm, MD, IVP, Auto, Scheduled |
| Playback Function | Day view, Hour view, Back Step, Rewind, Pause, Play,Fast Forward,
Slow, Step, Snap, Sound on/off, Zoom,Backup to U-Disk |
| Backup Mode | USB |
| HDD | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 6 TB |
| General | |
| Power Supply | DC12V |
| Consumption | ≤ 8 W |
| Working Temperature | 00C~ 550C |
| Working Humidity | 10% to 90% |
| Dimensions | 345x275x75mm |
| Weight | ≤ 1.4 kg |

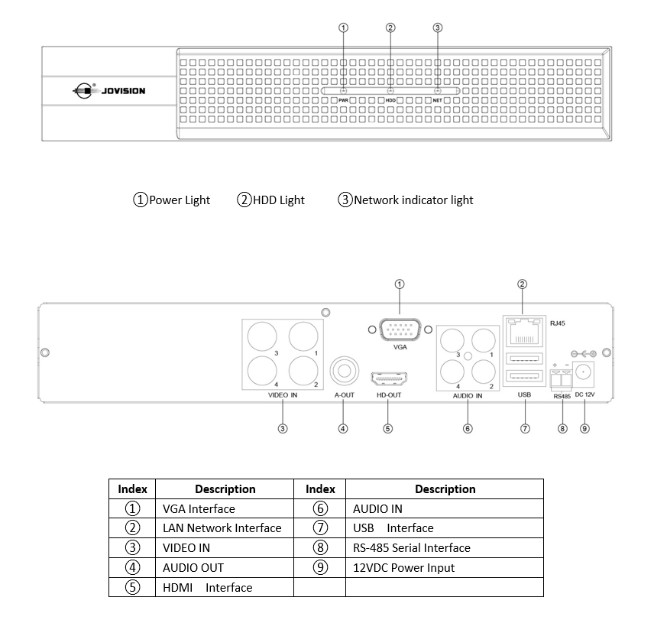

Dimensions (mm)
